HDD Hole Opener
An HDD hole opener, also known as a hole opener reamer, is a key tool used in horizontal directional drilling to enlarge the pilot hole to the required diameter.
Designed for hard rock and mixed formations, Wescoz horizontal hole openers feature durable cutting structures, strong stabilization, and efficient hole-cleaning performance. Replaceable cutters and a reinforced body design help reduce downtime, lower torque, and improve drilling efficiency in HDD pipeline installation and trenchless drilling projects.

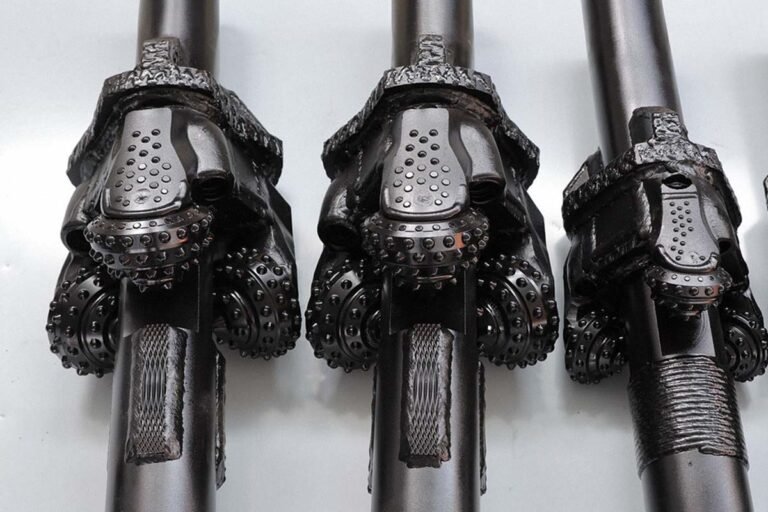

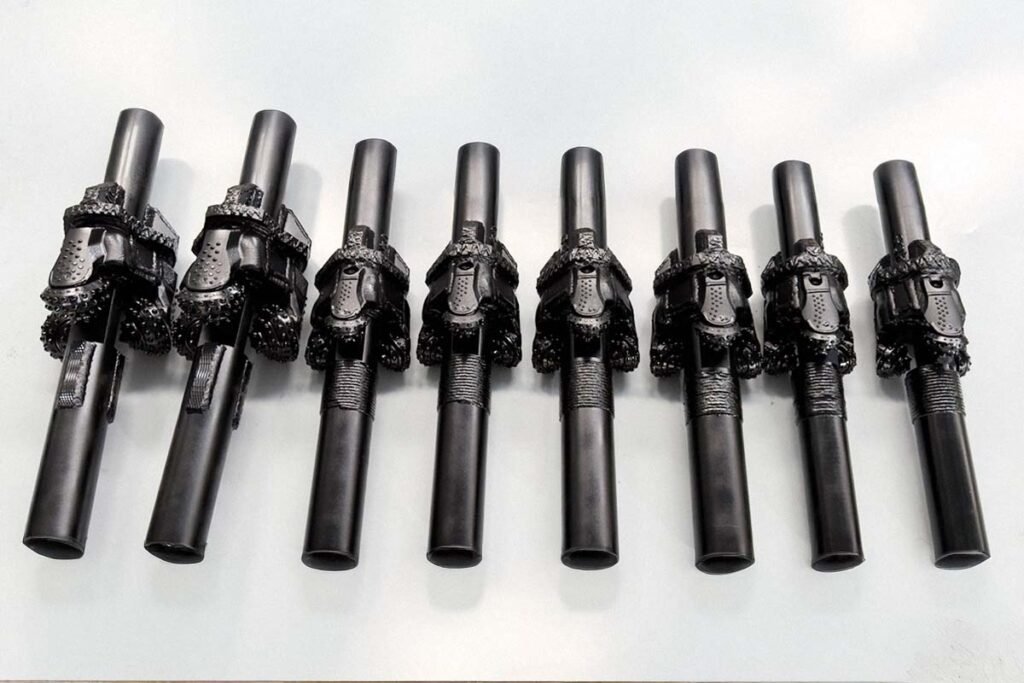

Welded Hole Opener
As a robust HDD rock reamer, the Wescoz Welded Hole Opener is engineered for maximum structural integrity during borehole enlargement. Its full-welded construction ensures the tricone cutters remain securely fixed under the extreme torque and vibration encountered in hard rock formations such as shale, granite, and limestone.
After pilot drilling, horizontal hole openers—especially tricone hole opener bits—are used to enlarge the borehole step by step. Designed for demanding rock formations, these hole opener bits deliver efficient cutting performance, reduced torque, improved stability, and reliable bore enlargement during HDD and trenchless drilling operations.
Bolt-on Hole Opener vs Welded Hole Opener

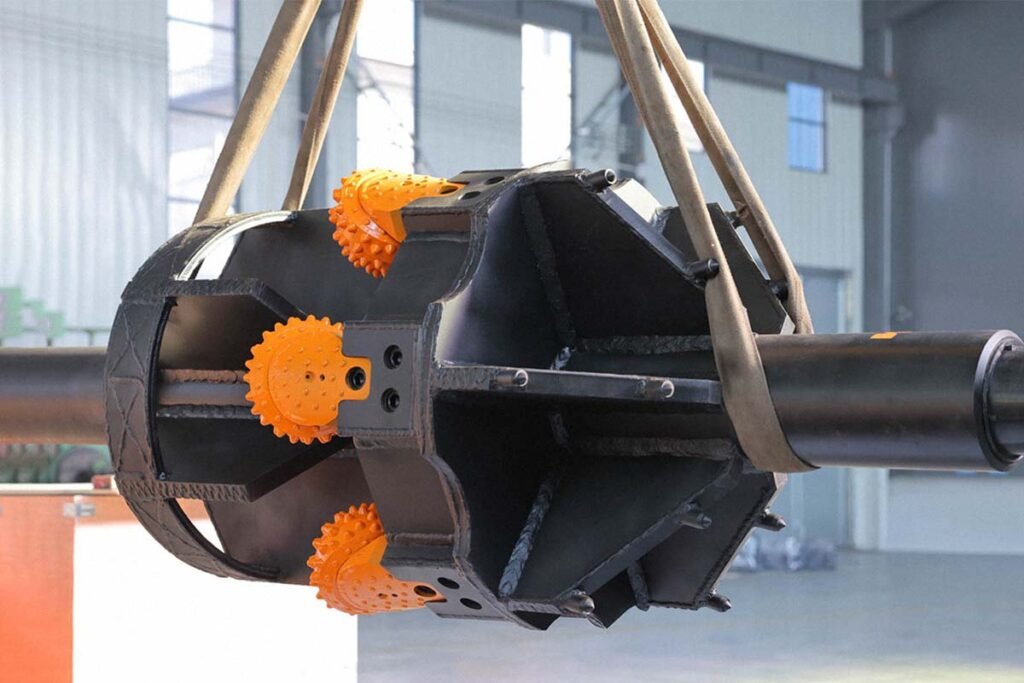

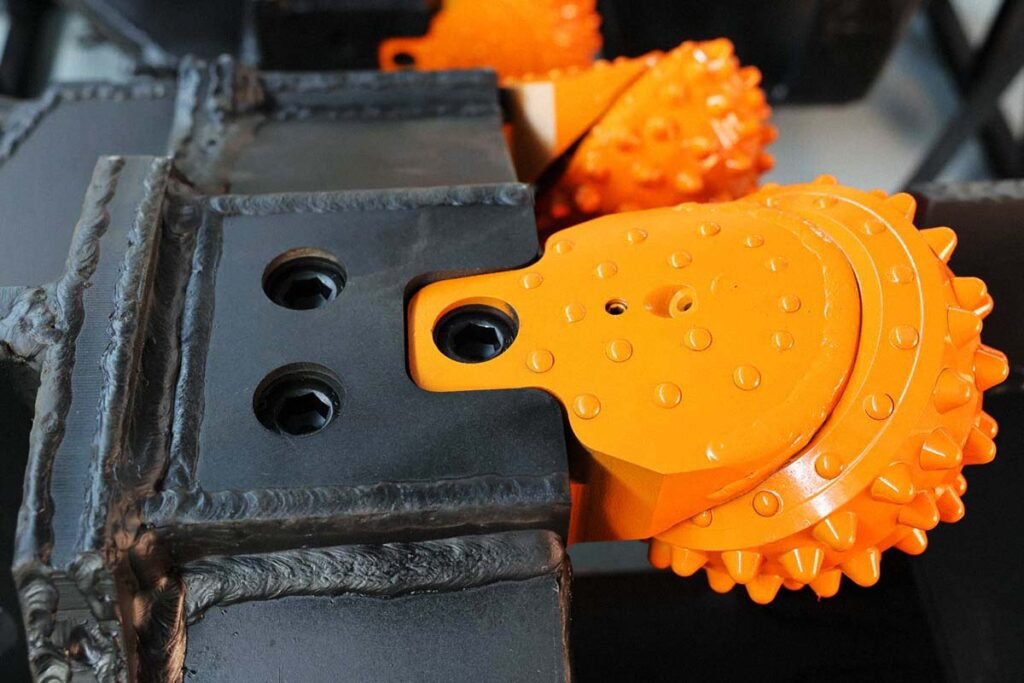

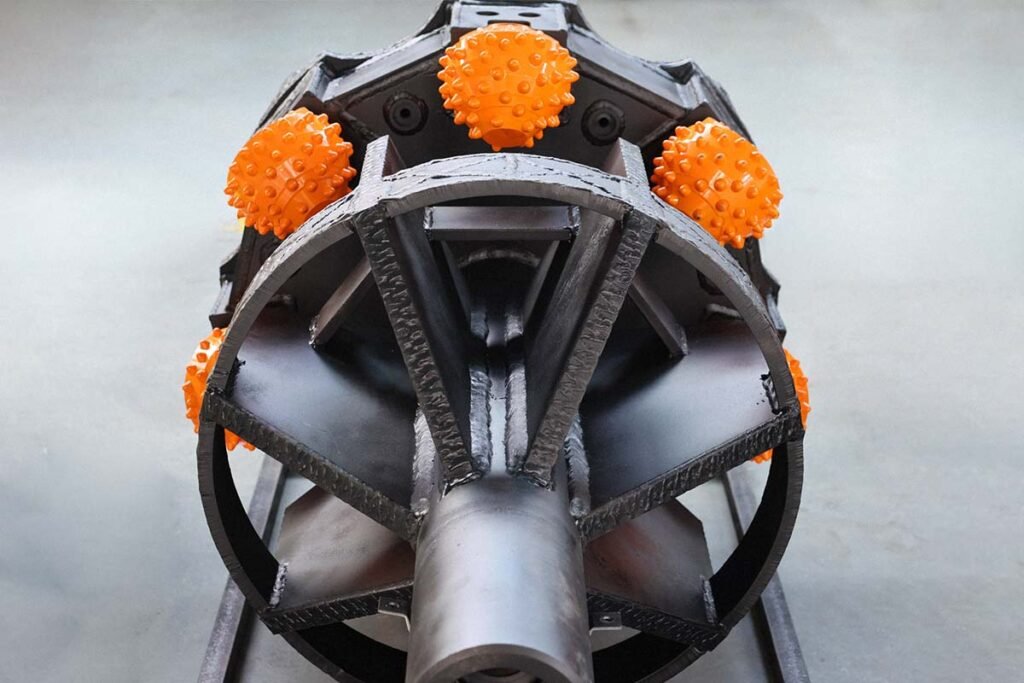

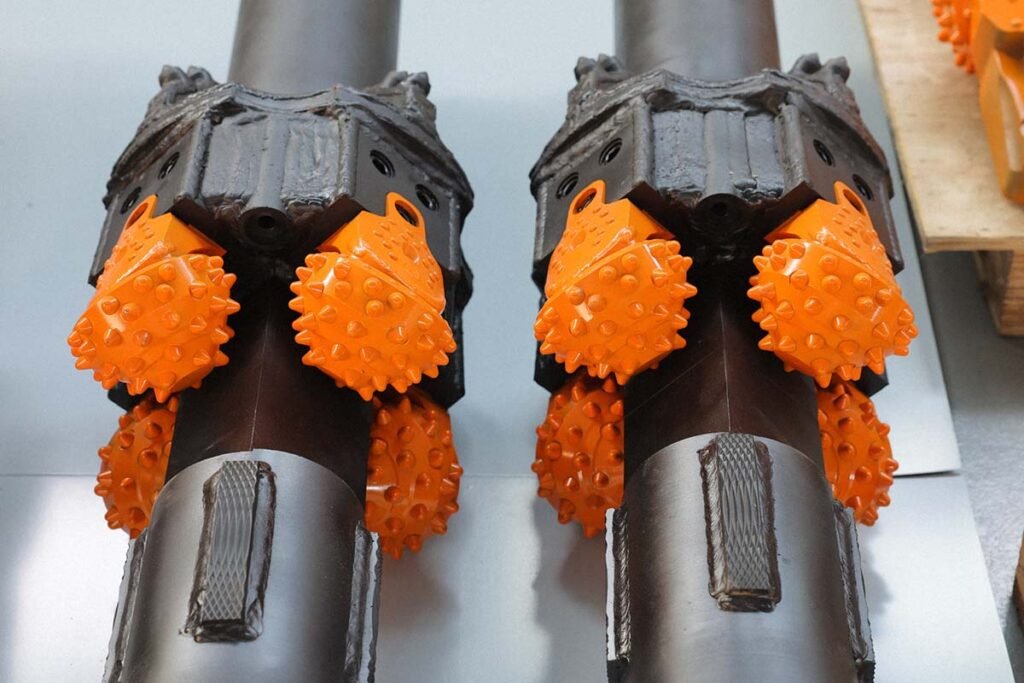

Bolt-on Hole Opener
The Wescoz Bolt-on Hole Opener is designed for flexibility, easy maintenance, and reliable performance in demanding HDD applications. Its modular bolt-on structure allows quick replacement of roller bits on site, helping reduce downtime and maintenance costs during drilling operations.
Features
Replaceable roller bits for fast and convenient on-site maintenance
Flexible cutter configuration for different geological formations
Consistent and stable drilling performance during long HDD projects
Reduced maintenance time and improved operational efficiency
When to Choose a Bolt-on Hole Opener
Long-distance HDD drilling projects
Mixed, variable, or unknown ground formations
Projects where minimizing downtime is critical
Operations requiring quick cutter replacement and easier maintenance
Welded Hole Opener
The Wescoz Welded Hole Opener features an integrated full-welded structure designed for maximum strength, durability, and stability in demanding HDD drilling applications. Built for heavy-duty borehole enlargement, it delivers reliable performance in hard and consistent rock formations.
Features
- Integrated welded structure for high strength and durability
- Excellent performance in heavy-duty drilling conditions
- Stable and reliable operation in demanding formations
- Strong structural integrity for high torque and vibration environments
When to Choose a Welded Hole Opener
- Short-term HDD projects
- Stable and consistent geological formations
- Applications where cutter replacement is not a primary concern
- Projects requiring robust and durable drilling tools
Choosing the right hole opener can be challenging, especially in hard rock and complex ground conditions where drilling performance, stability, and tool durability are critical.
For a more detailed selection guide, read our article on optimal HDD hole opener selection for hard rock and complex ground conditions, where we discuss formation matching, cutter selection, drilling strategies, and key factors for improving drilling efficiency and reducing operational costs.
Roller bit Type

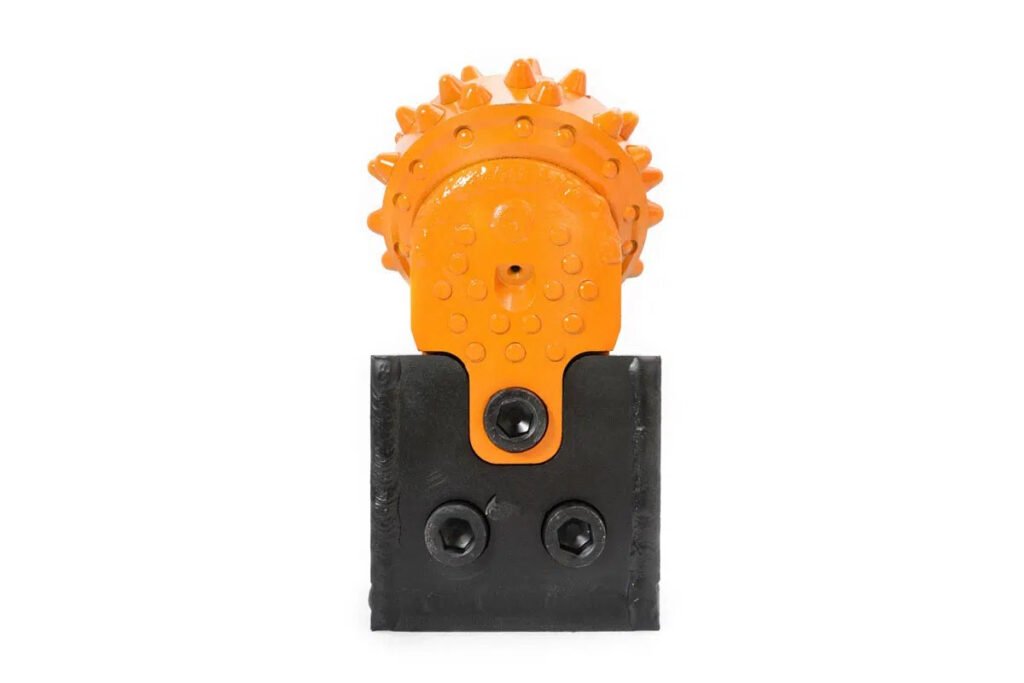

Bolt-on roller bit
• Size: 8-1/2″, 12-1/4″
• Fast onsite cutter replacement with 3-bolt system

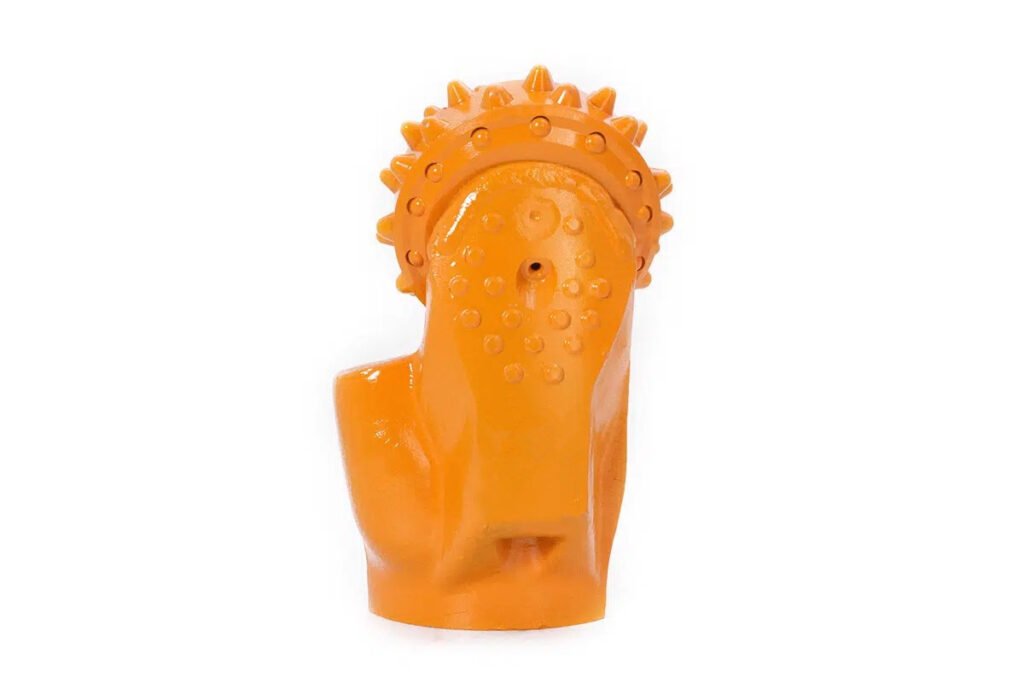

Welded roller bit
• Size: 6″, 8-1/2″, 9-7/8″, 12″
• IADC: 517, 537, 617, 637
| OD Size | Roller Bit Size Recommended | Rollers No. Recommended |
|---|---|---|
| 8” (203mm) | 5-7/8” | 3 |
| 10” (254mm) | 6” | 3 |
| 12” (305mm) | 8-1/2” | 3 |
| 14” (356mm) | 8-1/2” | 3 |
| 16” (406mm) | 8-1/2” | 4 |
| 18” (457mm) | 8-1/2” | 5 |
| 20” (508mm) | 8-1/2” | 5 |
| 22” (559mm) | 8-1/2” | 6 |
| 24” (610mm) | 8-1/2” | 7 |
| 26” (660mm) | 12-1/4” | 5 |
| 28” (711mm) | 12-1/4” | 5 |
| 30” (762mm) | 12-1/4” | 6 |
| 32” (813mm) | 12-1/4” | 7 |
| 34” (864mm) | 12-1/4” | 7 |
| 36” (914mm) | 12-1/4” | 8 |
| 38” (965mm) | 12-1/4” | 8 |
| 40” (1016mm) | 12-1/4” | 9 |

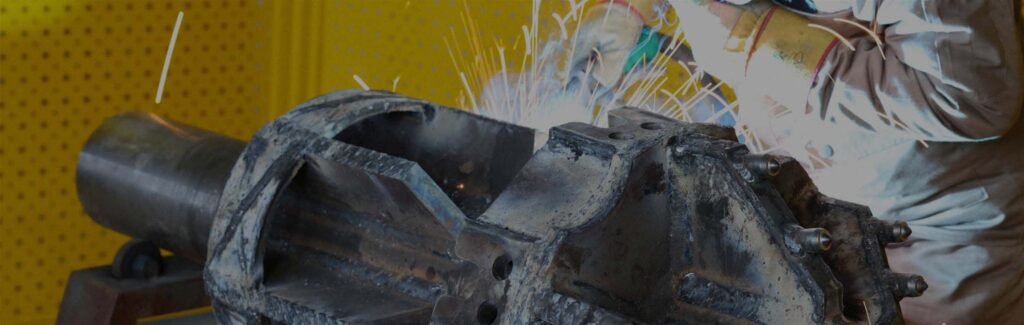

Our Factory
